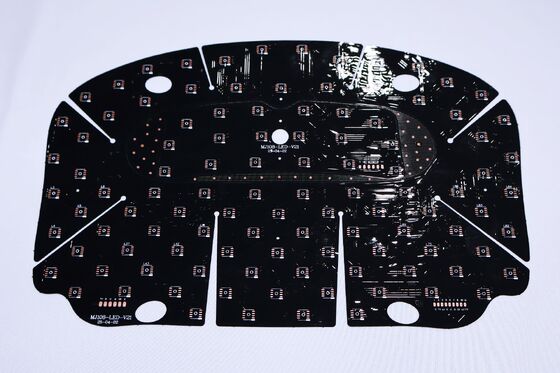

Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications

Name: Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ049
Availability: InStock

Marka Adı:	HONGQI
Model Numarası:	HQ049
Moq:	1000 adet
fiyat:	Anlaşılabilir
Teslim Zamanı:	Pazarlık edilebilir
Ödeme Şartları:	L/C, D/P, T/T, D/A

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Guangdong, Çin

Sertifika:

UL E477885 IATF16949 GB/T

Ambalaj bilgileri:

Güçlü kağıt kasalarla dolu

Yetenek temini:

Aylık 200000 Adet

Ürün Tanımı

Medical Equipment FPC Infrared Flexible Circuit Board

Professional FPC Design and Manufacturing

We are professional flexible printed circuit board manufacturers, providing comprehensive solutions including FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCB assemblies, and specialized circuit boards for medical beauty devices and hair growth instruments.

HQ049 Infrared Health Care FPC Specifications

Double layer board design with double-sided film coating
Whiteboard with black text markings
OSP antioxidant surface treatment
Excellent flexibility and bending resistance
Factory-tested with professional bending equipment
Customizable material thickness and process requirements

FPC Design Parameters

Dimensions

Board Type	Maximum Dimensions
Precision FPC	240mm x 500mm (Maximum: 250mm x 500mm)
Roll Material Board	240mm width x 100 meters length

Layer Configuration

Layer Type	Applications
Single-Layer Boards	Simple structure, ideal for industrial control and electronic instruments
Double-Layer Boards	Two copper foils with increased vias, suitable for mobile phones and automotive instruments

Solder Mask Color Options

Color	Recommended Applications
Yellow	Recommended for most products including various cable applications
Black	High-end or light-sensitive applications such as automotive, mobile phones, LED displays
White	Products requiring reflection, including lighting fixtures and medical beauty devices

Copper Foil Thickness Options

Board Type	Thickness Options
Precision FPC Single Panel	18um (0.5oz) or 35um (1oz)
Precision FPC Double-Layer Board	12um (0.33oz), 18um (0.5oz), or 35um (1oz)
Ordinary FPC Single Panel	18um/25um/35um (1oz) or 50um
Ordinary FPC Double-Layer Board	18-25um, 25-25um, 35-35um, or 35-70um

Minimum Line Width/Spacing

Recommended minimum of 3mil to reduce manufacturing difficulty and defect rates.

Certificates and Honors

Important Note

All photos on this site are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. We specialize in FPC sample production and customization services, offering comprehensive solutions including substrate production, wiring, principle design, mold creation, SMT assembly, and plug-in services.

Contact us online or via email for personalized service from our professional sales team. We provide one-on-one consultation to meet your specific requirements.
